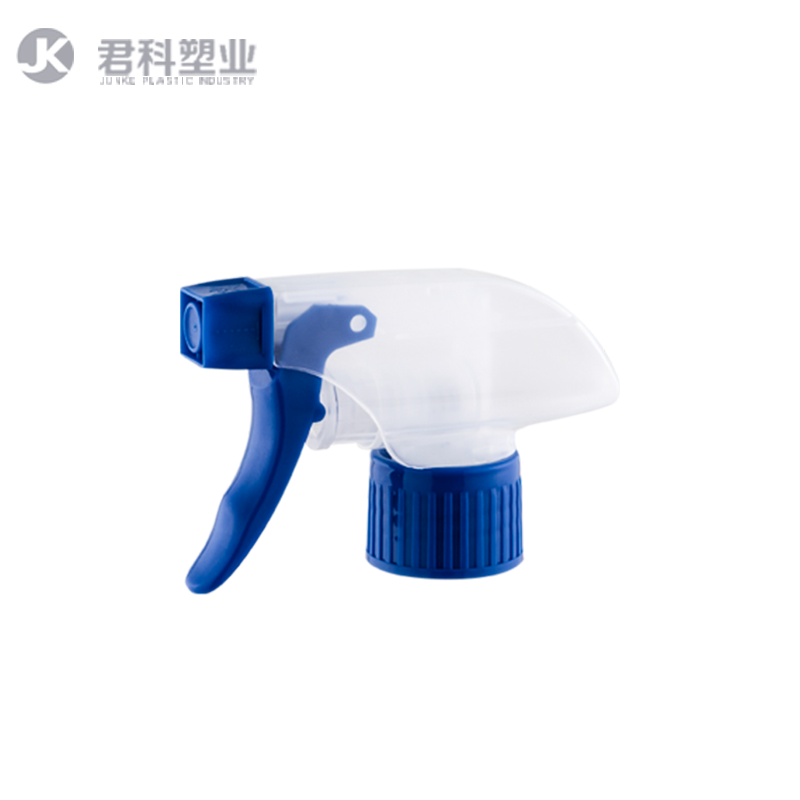

Analysis of the structural design and working principle of plastic trigger sprayer

Introduction

Plastic trigger sprayers are one of the most widely used liquid dispensing devices in daily life and industrial fields. From household cleaning products, gardening solutions, personal care items, to automotive and industrial chemicals, trigger sprayers have proven to be extremely versatile and cost-effective. The design of a plastic trigger sprayer might appear simple at first glance, but in reality, it integrates fluid dynamics, material science, ergonomic design, and industrial manufacturing.

A trigger sprayer’s basic idea is to convert the manual force applied by the user into pressure that atomizes liquid into a fine mist or stream. Unlike pressure bottles that rely on gas propellants, a trigger sprayer depends entirely on mechanical pumping action. This makes it safer, reusable, and more environmentally friendly. In this section, we will first analyze its structural design, followed by a deep dive into its working principles, and finally, explore how design optimizations can lead to better performance and sustainability.

Structural Design of a Plastic Trigger Sprayer

The structural design of a plastic trigger sprayer is composed of several essential components that work in harmony to achieve liquid delivery. Each part has its specific role and contributes to the efficiency of the sprayer. Below are the main elements:

Trigger

The trigger is the primary interface between the user and the device. Its main purpose is to transmit the mechanical force of the fingers into the pumping system. Most triggers are designed with ergonomic considerations: the length, curvature, and texture all influence how comfortable it feels in the hand. For professional applications, like industrial cleaning, the trigger is often reinforced to withstand long-term repetitive use.

Pump Chamber

The pump chamber is the heart of the sprayer. It houses the piston and spring mechanism that creates the suction and pressure necessary for fluid movement. The volume of the pump chamber directly impacts the dosage per spray. A well-designed pump chamber balances efficiency and user effort, ensuring that one pull delivers the right amount of liquid. High-quality sprayers often use precision-molded pump chambers to minimize leakage and wear.

Dip Tube

The dip tube extends into the liquid container and ensures that the liquid can be drawn up into the pump chamber. Usually made from polyethylene (PE) or polypropylene (PP), the dip tube must resist chemical corrosion, especially when used with acidic or alkaline cleaning solutions. The length of the dip tube is matched to the container size to minimize leftover liquid.

Nozzle

The nozzle determines the final form of liquid delivery: mist, stream, or foam. Adjustable nozzles are widely used to provide multifunctionality in one device. For example, a cleaning spray might need a wide mist for large surface areas and a narrow stream for targeted spots. The nozzle design is a direct application of fluid mechanics, where the liquid is forced through tiny openings that break it into small droplets.

Valve System

The valve system ensures one-way liquid flow. Typically, there are two check valves: one at the dip tube entrance (inlet valve) and one at the nozzle exit (outlet valve). These prevent liquid from flowing backward and keep the pump chamber primed for the next use. The precision of the valve system significantly affects the efficiency of the sprayer.

Here is a simple comparison of different materials used in key components:

Working Principle of a Plastic Trigger Sprayer

The working principle of a trigger sprayer revolves around converting manual force into hydraulic pressure, followed by atomization at the nozzle. The process can be broken into several stages:

Stage 1: Initiation

When the user presses the trigger, the piston is pushed into the pump chamber. This action compresses the air inside, generating a negative pressure at the inlet.

Stage 2: Suction

Due to the negative pressure, the inlet valve at the dip tube opens, allowing liquid to rise into the pump chamber. This action is similar to drinking with a straw, but it is automated through mechanical compression.

Stage 3: Compression

As the user continues pressing, the piston pushes the liquid inside the pump chamber towards the outlet valve. Once a threshold pressure is reached, the outlet valve opens.

Stage 4: Atomization

The liquid exits the nozzle at high velocity. The nozzle structure, often consisting of fine grooves and narrow apertures, breaks the liquid into droplets. This atomization process determines whether the output is a mist or a stream.

Stage 5: Reset

Once the user releases the trigger, the spring inside the pump chamber pushes the piston back to its original position. The inlet valve closes to prevent liquid from flowing backward, while the chamber is refilled for the next spray. This cycle can be repeated countless times depending on the durability of the components.

Key Points in Design Optimization

Design optimization is what makes one sprayer superior to another. By improving critical areas, manufacturers can enhance durability, comfort, and performance.

Nozzle Design

The nozzle has the greatest impact on user experience. A high-quality nozzle should allow adjustable patterns, such as mist, stream, or foam. Foam nozzles are often used for detergents, while mist nozzles are preferred for gardening or personal care. Advanced designs may include anti-clogging features to handle viscous liquids.

Material Selection

Material selection is crucial because sprayers are exposed to various chemicals. Strong alkaline cleaners require resistant plastics like polypropylene or fluoropolymers. For eco-friendly options, some manufacturers are experimenting with biodegradable plastics.

Ergonomics

Ergonomic design ensures that users can operate the sprayer comfortably over extended periods. This includes trigger shape, resistance level, and grip design. For example, adding a soft rubber layer improves grip and reduces fatigue.

Durability

Durability is influenced by the quality of springs, valves, and seals. Stainless steel springs significantly extend the life of a sprayer compared to plastic springs. Similarly, double-sealed valves prevent leaks and maintain consistent performance.

The plastic trigger sprayer is more than just a simple household tool. It embodies a blend of mechanical engineering, fluid dynamics, and ergonomic design. From its carefully designed components like the trigger, pump chamber, dip tube, and nozzle, to its efficient working principle based on suction and atomization, every detail matters in determining performance and durability. With increasing focus on sustainability, the future of trigger sprayers lies in the use of recyclable or biodegradable materials and designs that reduce waste while maintaining performance. Understanding the structure and principles behind this everyday tool not only enhances appreciation of its utility but also paves the way for innovation in packaging and liquid dispensing industries.
